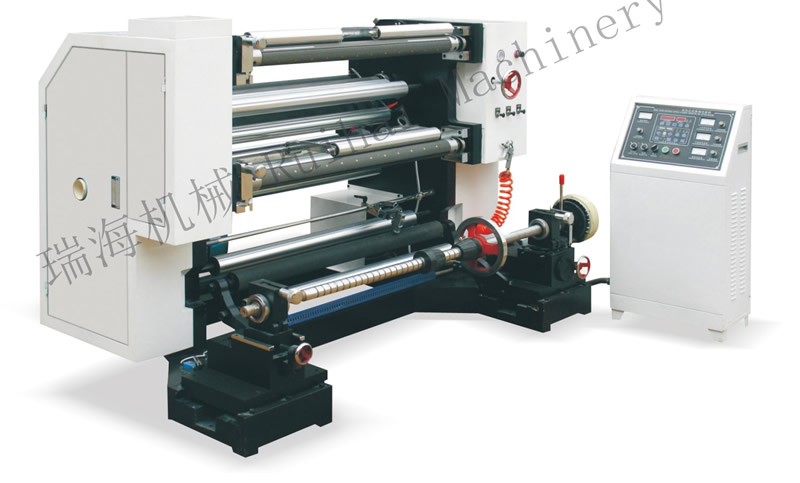

Name:LFQ-B Computer High-speed Slitting And Rewinding Machine
Model
LFQ-1100
LFQ-1300
Max.width Of Unwinding
1100mm
1300mm
Max.diameter Of Unwinding
φ600mm
φ600mm
Width Of Slitting
30mm
30mm
Maxdiameter Of Erwinding
φ400mm
φ400mm
Seppd
10-150m/min
10-150m/min
Total Power
4.5kw
4.5kw
Weight
1500kg
1800kg
Overall Dimension(LxWxH)
1100×1800×1400mm
1100×2000×1400mm
No:LFQ-B
Performance and Characteristics
This machine is suitable for slitting and cutting such various roll materials as BOPP,PET, CPP, CPE, PVC, aluminum foil and paper,etc.
And can slit edge,separate and slit material according to different requirements during production. The machine is a kind of vertical slitting and cutting machines,unwinding and rewinding can be in front of or at the back of the machine.Independent master control screen, more flexible and even easier for operation. Automaticerro-correction of unwinding, photo cell is suitable for tracking the edge and color of transparent material. Unwinding tension adopts magnetic powder brake control. Rewinding adopts magnetic powder clutch control. Automatic waste film blowing device. Automatic meter counting for length of running material and automatic stop working.
Main Technical Parameters
