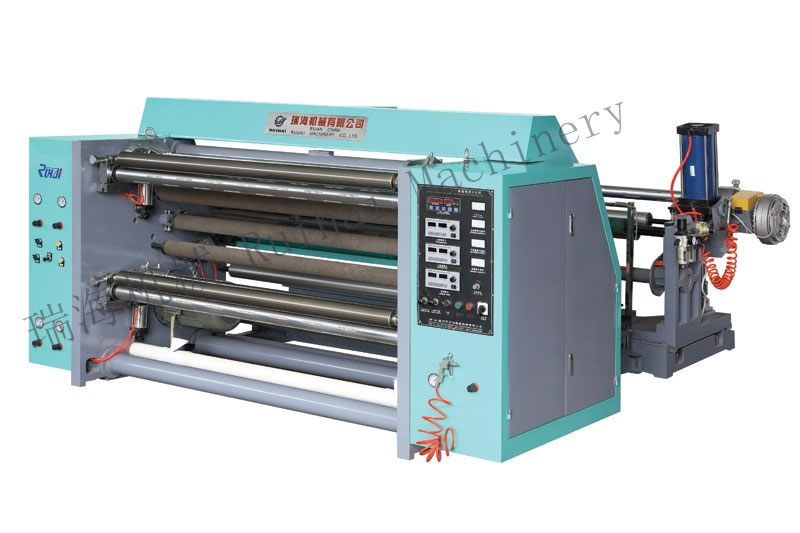

Name:WZFQ-C Computer High-speed Slitting And Rewinding Machine
No:WZFQ-C
Performance and Characteristics
This machine is used for slitting and rewinding various large rolling materials such as paper,(20g/m2-120g/m2) cellophane paper, bill paper, double-face adhesive tape, PVC, OPP, PET, weave material, nowoven of cloth, etc.
? This machine use microcomputer control,magnetic powder cluth style tension control,and also with central winding style.
? Mian motor use frequency converter for timing,it has the functions of automatic metering,automatic alarm,etc.
? Adopt A and B pneumatic shaft structure for rewinding.
? It adopts photoelectric automatic error correction adjustment system for unwinding,anomalistic materials will be easy slit.(or liquid press style subtense system).
? Equipped with automatic waste film blowing device.(vertical knife structure)Manual material loading for unwinding(or pneumatic automatic material loading)with taper cover style pneumatic shaft.
Main Technical Parameters
Model |
WZFQ-1100C |
WZFQ-1300C |
WZFQ-1600C |
Max.width of unwinding |
1100mm |
1300mm |
1600mm |
Max.diameter of unwinding |
φ1400mm |
φ1400mm |
φ1400mm |
Min.width of slitting |
30mm |
30mm |
30mm |
Max.diameter of rewinding |
Φ550mm |
Φ550mm |
Φ550mm |
Speed |
10-150m/min |
10-150m/min |
10-150m/min |
Total Power |
6.5kw |
8.5kw |
8.5kw |
power supply |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Weight |
2800kg |
3000kg |
3500kg |
Overall dimension (LxWxH) |
3100x2250x1350(mm) |
3100x2450x1350(mm) |
3100x2650x1350(mm) |
