Performance and Characteristics

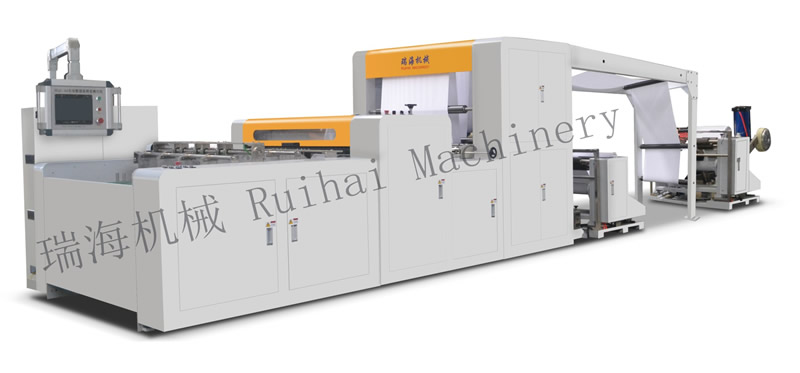

This machine is suitable for cutting big rolling packaging materials such as office, paper-plastic,photo paper material,etc.

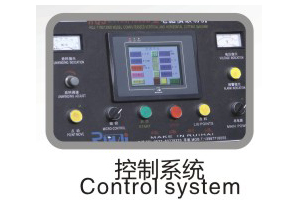

? It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
? It adopts pneumatic,photoelectric sensor for controlling transminssion system, with photo,electric, gas together, it has the functions of easy operation, high precision, good stability,low noise.
? This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste.
? This machine can be with 1 roll.2roll.4roll loading systerm.
Main Technical Parameters
Model |
HQJ-1100D(Two roll) |
HQJ-1400D(Two roll) |
Max.width of cutting |
1100mm |
1400mm |
Max diameter of material |
φ1400mm |
φ1400mm |
Min.width of cutting |
50mm |
50mm |
Length of cutting |
20-400mm |
20-400mm |
Speed |
10-140times/min |
10-140times/min |
Precision |
±0.2mm |
±0.2mm |
Total Power |
9.5kw |
11kw |
Weight |
3500kg |
4000kg |
Overall dimension(LxWxH) |
8600x1500x2000mm |
8600x1800x2000mm |
