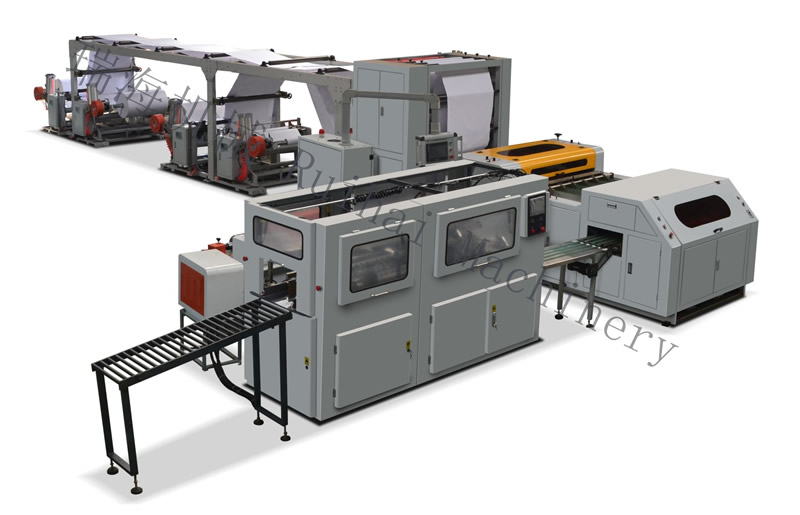

Automatic A4 Paper Cutting And Packaging Machine in Line


Performance and Characteristics

This machine is suitable for cutting big rolling packaging materials such as office, paper-plastic,photo paper material,etc.
? It adopts PLC touch screen control, servo motor for controlling constant-length cutting.
? It adopts pneumatic,photoelectric sensor for controlling transminssion system, with photo,electric, gas together, it has the functions of easy operation, high precision, good stability,low noise.
? This machine has the functions of the frequency converter timing device, auto-matic counting, stop working by alarm magnetic powder tension control, can be cutted vertically, adopt blower to get rid of waste.
? This machine can be with 1 roll.2roll.4roll loading systerm.

Main Technical Parameters

Model

HQJ-1100A4

HQJ-1400A4

Max.width of cutting

1100mm

1400mm

Max diameter of material

φ1400mm

φ1400mm

Min.width of cutting

50mm

50mm

Length of cutting

20-400mm

20-400mm

Speed

10-180times/min

10-180times/min

Precision

±0.2mm

±0.2mm

Total Power

15kw

17kw

Weight

8000kg

8600kg

Overall dimension(LxWxH)

12000x1900x2000mm

12000x2200x2000mm
